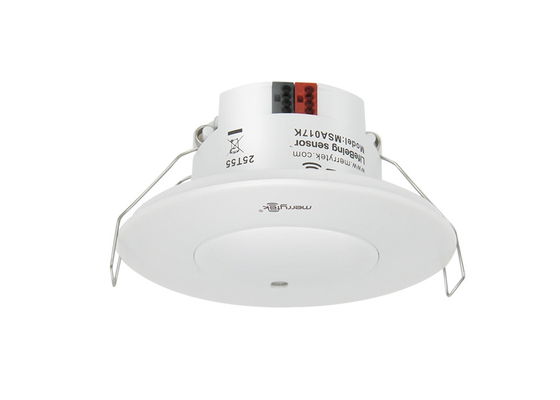

MSA017K Occupancy Motion Sensor With KNX Standard Communication
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | MSA017K |
| Minimum Order Quantity | 100pcs |
| Price | Negotiation |
| Packaging Details | Color box + flat card + outer box (K=A) |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T or Western Union or PayPal |
| Supply Ability | 10,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detecting Technology | Movement / Minor Motion / Breathing / Daylight Harvesting | Working Mode | ON-OFF |
|---|---|---|---|
| Rated Voltage | 24-30v Dc (KNX Bus Power Supply) | Transmitting Power | 0.5mW Max. |
| Working Current | 15mA Max (@30V DC) | ||
| Highlight | MSA017K Occupancy Motion Sensor,CE Standard Occupancy Motion Sensor,MSA017K presence detectors occupancy sensor |
||
Product Description
Occupancy Sensor of Breathing Dedetecting with KNX Standard Communication MSA017K
1. Innovative patent energy-saving switch, control lights ON-OFF automatically. Traditional switch is needless.
2. A very sightly movement even human breathing can be collected, never worry a sudden shut-off when light is necessary.
3. Interference-free with flying insects, falling leaves, air vent and wireless signal (WiFi, Bluetooth, 4G and 5G).
4. Adjustable detecting settings, suitable for various places, such as toilet, kitchen, office, library, corridor etc..
| Rated Voltage | 24-30v DC (KNX bus power supply) |
| Working Current | 15mA max (@30V DC) |
| Detecting Technology | Movement / minor motion / breathing |
| Communication Method | KNX standard communication protocol |
| Operating Frequency | 5.8 GHz ±75 MHz, ISM band |
| Transmitting Power | 0.5mW Max. |
| Operating Temperature | -25~50℃ |
| IP Rating | IP20 |
| Cut Size | φ55-65mm |
| Installation Mode | Embedded installation |
