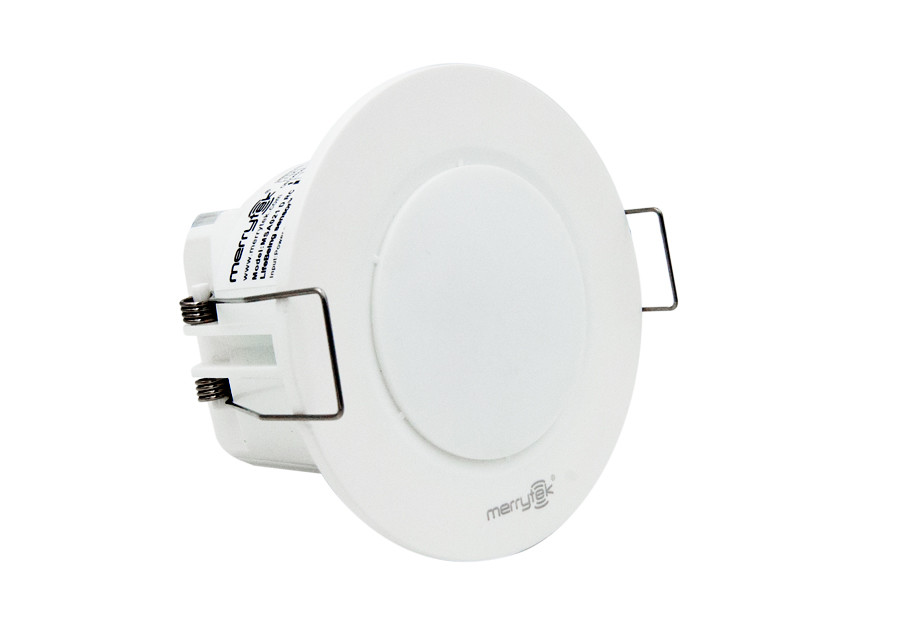

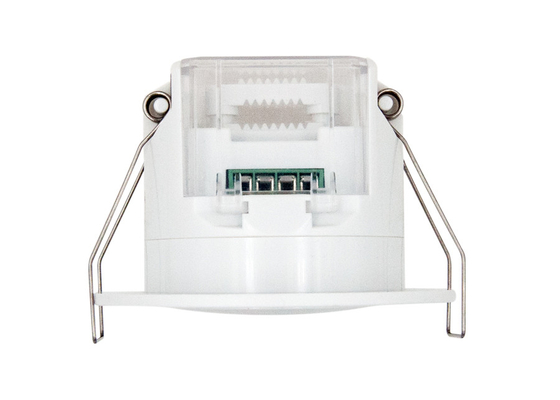

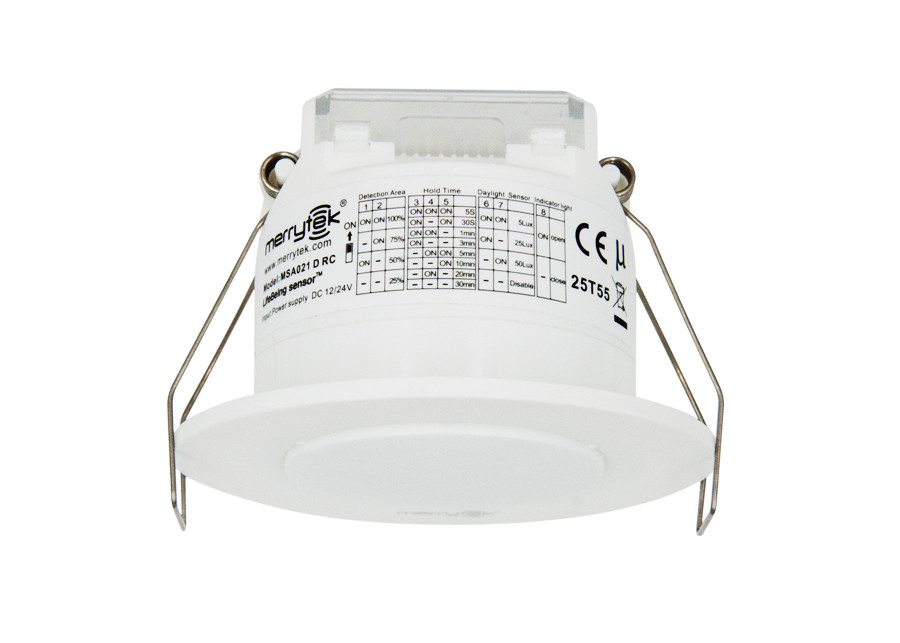

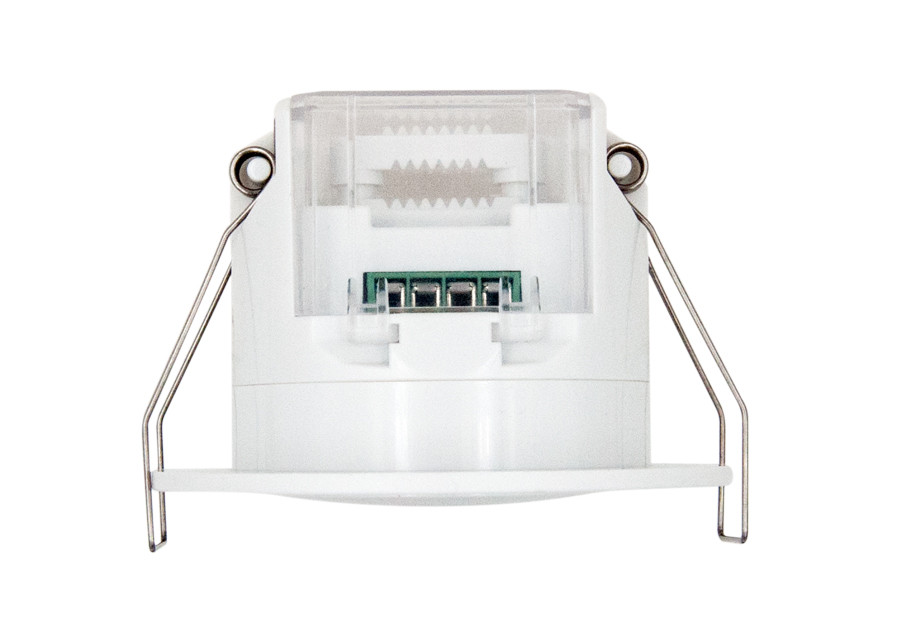

Breathing Detecting ceiling mounted occupancy sensor Dry Contact Output MSA021D RC

  • Breathing Detecting ceiling mounted occupancy sensor Dry Contact Output MSA021D RC
  • Breathing Detecting ceiling mounted occupancy sensor Dry Contact Output MSA021D RC
  • Breathing Detecting ceiling mounted occupancy sensor Dry Contact Output MSA021D RC
  • Breathing Detecting ceiling mounted occupancy sensor Dry Contact Output MSA021D RC
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA021D RC
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Color box + flat card + outer box (K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detecting Technology Movement / Minor Motion / Breathing Working Mode Dry Contact
Rated Voltage 12-24V DC Stand-by Power 0.5W
Load Capacity 36V 50mA Max Resistive Working Frequency 5.8 GHz ±75 MHz, ISM Band
Highlight

Breathing Detection room occupancy sensor

,

ceiling mounted occupancy sensor

,

24V DC smart occupancy sensor
Leave a Message
Product Description

Occupancy / Vacancy Sensor of Breathing Detecting, Flush Mounted, 12-24Vdc, Dry Contact Output MSA021D RC

Breathing Detecting ceiling mounted occupancy sensor Dry Contact Output MSA021D RC 0





1. Innovative patent energy-saving switch, control lights ON-OFF automatically. Traditional switch is needless.

2. A very sightly movement even human breathing can be collected, never worry a sudden shut-off when light is necessary.

3. Interference-free with flying insects, falling leaves, air vent and wireless signal (WiFi, Bluetooth, 4G and 5G).

4. Adjustable detecting settings, suitable for various places, such as toilet, kitchen, office, library, corridor etc..



Working Voltage 12-24V DC operate
Working Current 45mA max@12V
The Rated Load 36V 50mA max
Detection Technology Occupancy Detecting, Daylight Detecting
Working Mode Dry contact (normally open)
Working Frequency 5.8 GHz ±75 MHz, ISM band
Transmission Power 0.5mW Max.
Hold Time 5S/30S/1Min/3Min/5Min/10Min/20Min/30Min
Detection Area 100%/75%/50%/25%
Daylight Sensor 5lux/25lux/50lux/Disable
Working Temperature -25~50℃
IP Rating IP20
Cut Size φ65-75mm







Breathing Detecting ceiling mounted occupancy sensor Dry Contact Output MSA021D RC 1

Breathing Detecting ceiling mounted occupancy sensor Dry Contact Output MSA021D RC 2

Breathing Detecting ceiling mounted occupancy sensor Dry Contact Output MSA021D RC 3

Breathing Detecting ceiling mounted occupancy sensor Dry Contact Output MSA021D RC 4

Breathing Detecting ceiling mounted occupancy sensor Dry Contact Output MSA021D RC 5

Breathing Detecting ceiling mounted occupancy sensor Dry Contact Output MSA021D RC 6

Breathing Detecting ceiling mounted occupancy sensor Dry Contact Output MSA021D RC 7

Breathing Detecting ceiling mounted occupancy sensor Dry Contact Output MSA021D RC 8

Breathing Detecting ceiling mounted occupancy sensor Dry Contact Output MSA021D RC 9
