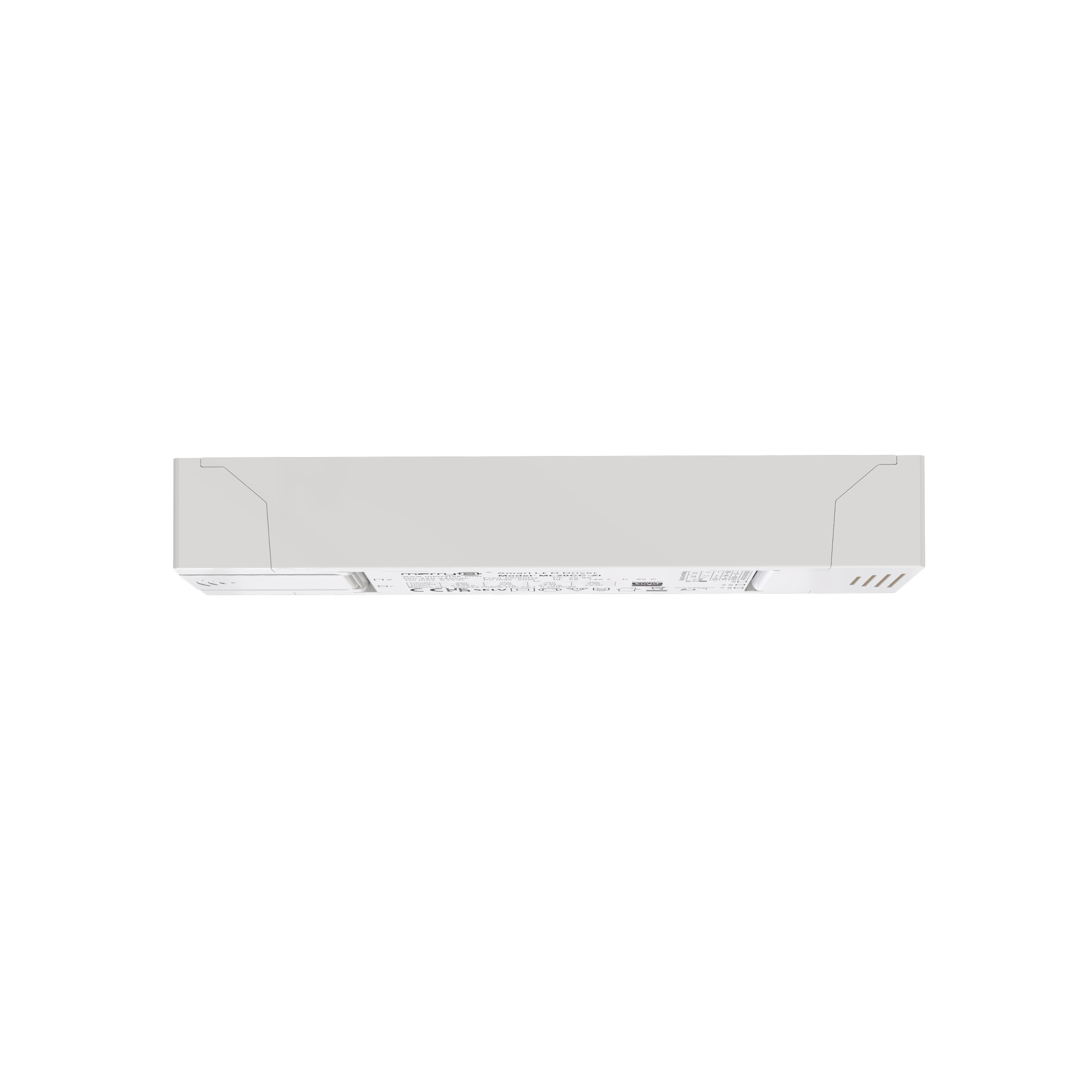

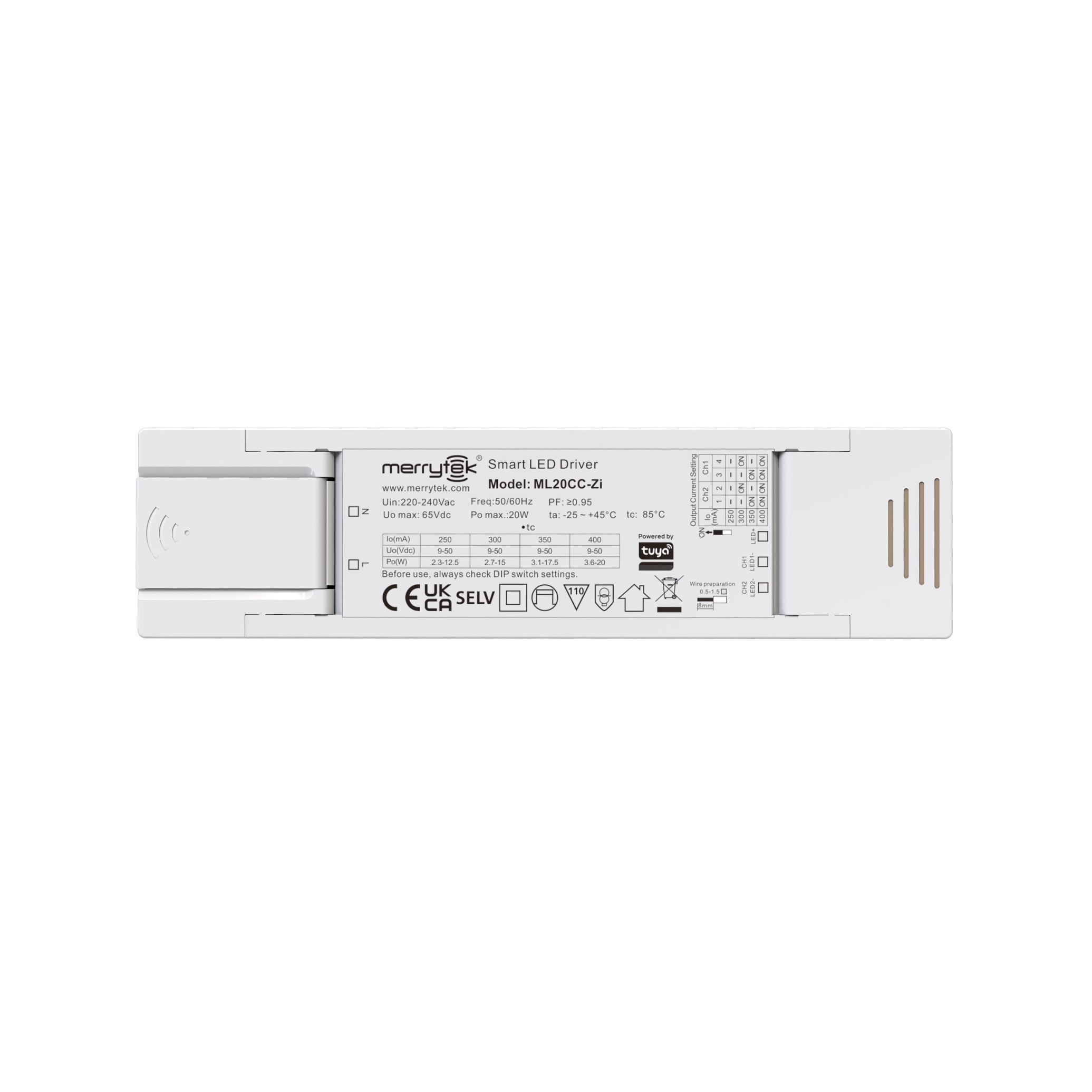

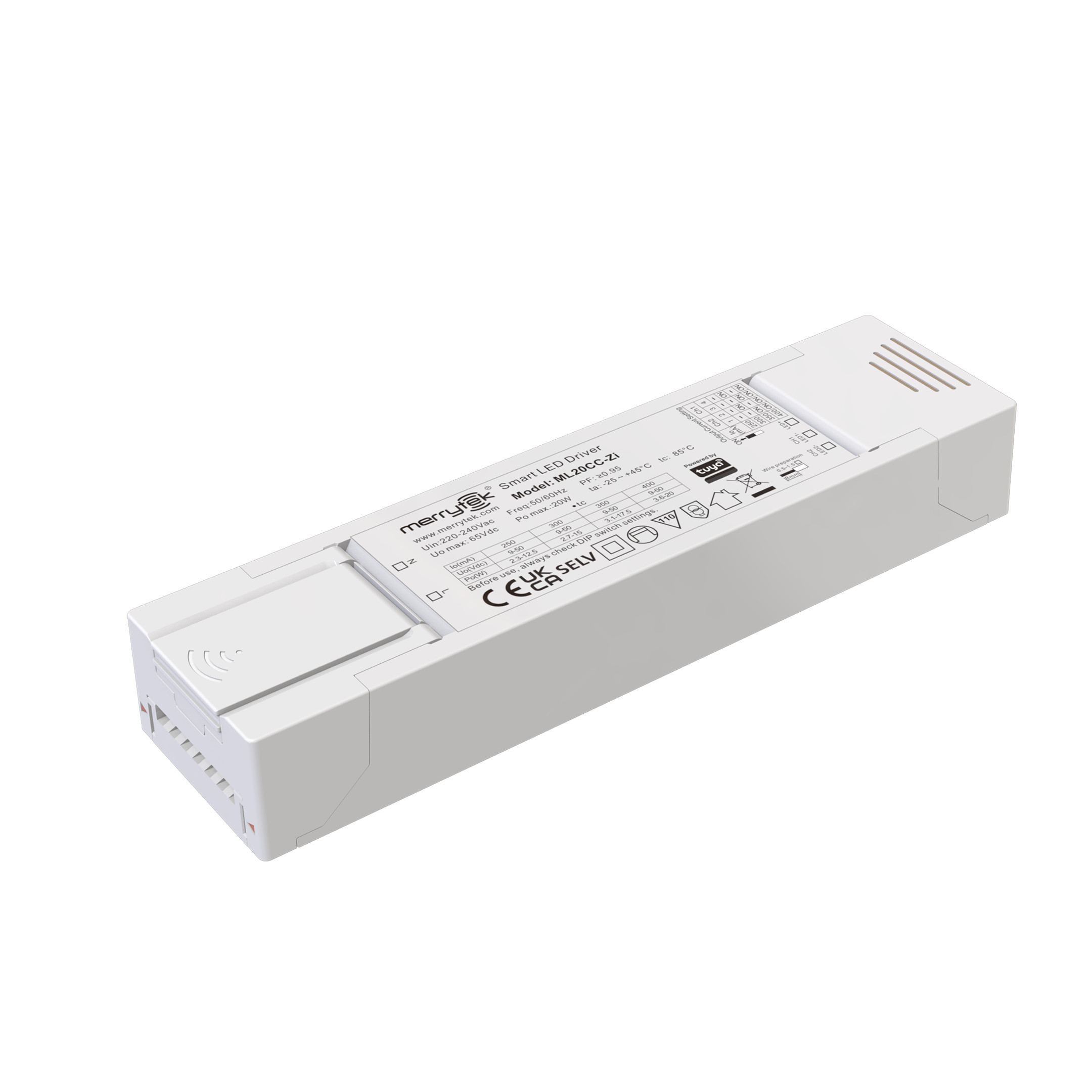

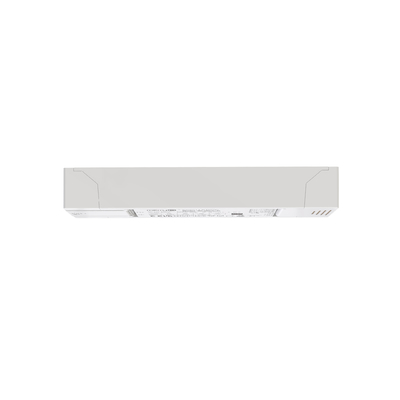

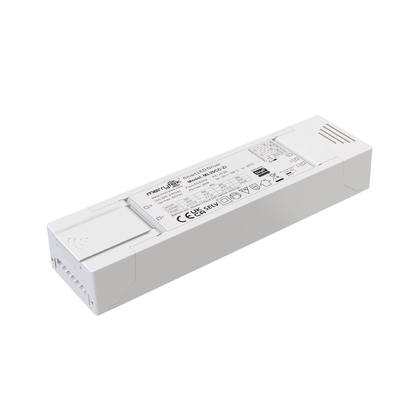

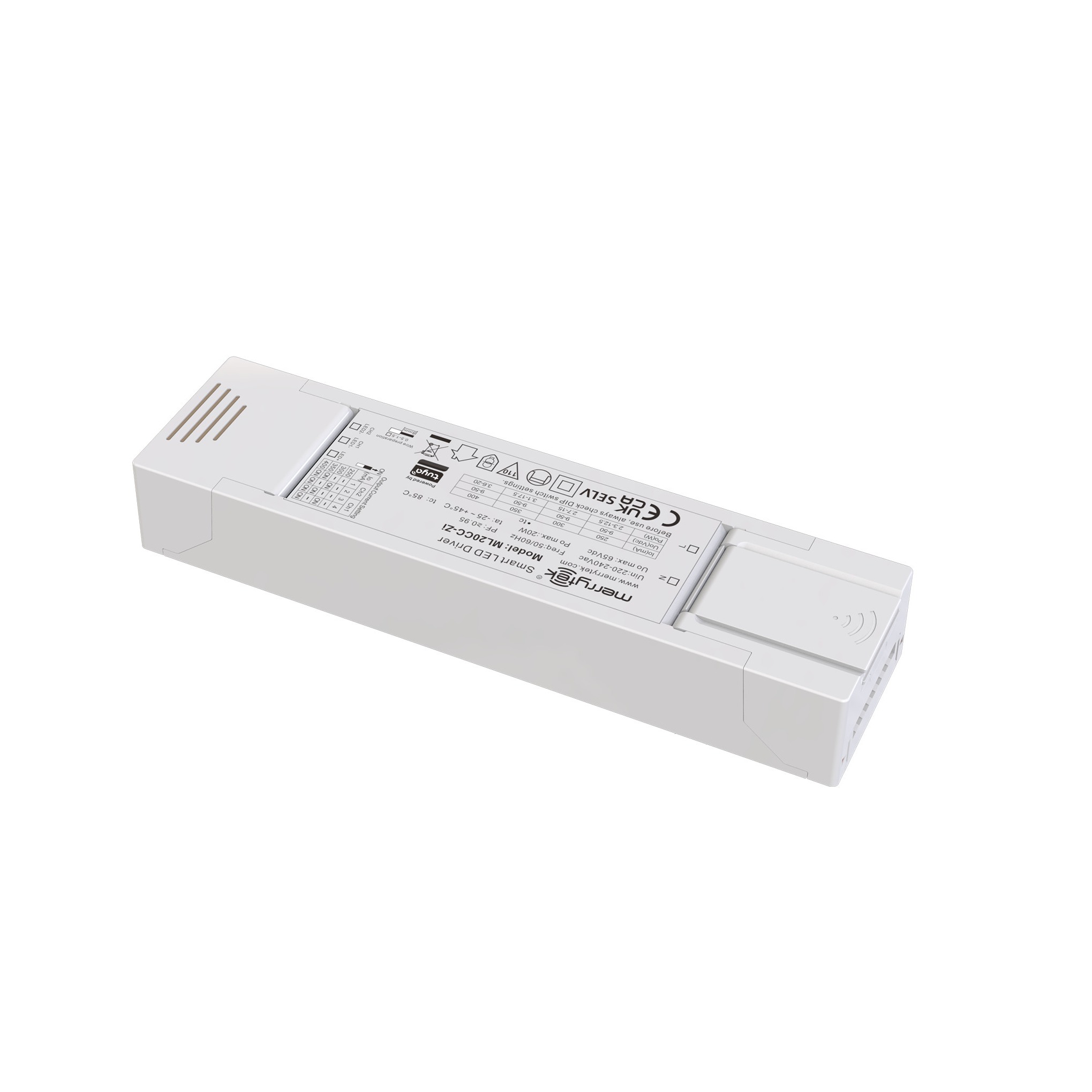

Tuya Zigbee3.0 IOT Driver ML20C-Zi & ML20CC-Zi ML46C-Zi & ML46CC-Zi

  • Tuya Zigbee3.0 IOT Driver ML20C-Zi & ML20CC-Zi ML46C-Zi & ML46CC-Zi
  • Tuya Zigbee3.0 IOT Driver ML20C-Zi & ML20CC-Zi ML46C-Zi & ML46CC-Zi
  • Tuya Zigbee3.0 IOT Driver ML20C-Zi & ML20CC-Zi ML46C-Zi & ML46CC-Zi
  • Tuya Zigbee3.0 IOT Driver ML20C-Zi & ML20CC-Zi ML46C-Zi & ML46CC-Zi
Place of Origin China
Brand Name merrytek
Certification CE SAA TUV CCC
Model Number ML20C-Zi & ML20CC-Zi ML46C-Zi & ML46CC-Zi
Minimum Order Quantity 50PCS
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Tuya Zigbee3.0 IOT Driver

,

CCC IOT Driver

,

TUV IOT Driver
Leave a Message
Product Description

【Product Feature】
Tuya Zigbee3.0,work interactively with Tuya ecological chain smart devices
0-100% deep dimming,single device,group device and scene control by gateway
Multiple output current set via dip switches,high PF and efficiency,low
Power consumption,long life time
Two level circuit,Flicker-free,Fade time setting,smooth dimming curve
CE/TUV/CCC/SAA,ERP
Dimming and color temperature tuning

Tuya Zigbee3.0 IOT Driver ML20C-Zi & ML20CC-Zi ML46C-Zi & ML46CC-Zi 0Tuya Zigbee3.0 IOT Driver ML20C-Zi & ML20CC-Zi ML46C-Zi & ML46CC-Zi 1Tuya Zigbee3.0 IOT Driver ML20C-Zi & ML20CC-Zi ML46C-Zi & ML46CC-Zi 2Tuya Zigbee3.0 IOT Driver ML20C-Zi & ML20CC-Zi ML46C-Zi & ML46CC-Zi 3

【Parameters】

Model No. ML20C-Zi ML20CC-Zi ML46C-Zi ML46CC-Zi
Input
Rated voltage 220-240V AC 50/60Hz
Input current 0.13A Max 0.12A Max 0.26A Max
Surge capacity <15A (100us alf-current) @230V AC ≤30A (100us alf-current) @230V AC
THD 20W full output 20W full output 46W full output 46W full output
@230V AC THD <15%
PF ≥0.95 @230V AC (full load)
Standby power <0.5W
Efficiency 84%Max@230V AC (full load) 88%Max@230V AC (full load)
Output
Working mode CC
Load type LED
Start time <1s (@230V AC full load)
Ripple current ±5% (@230V AC, 100% load, LED load)
Flicker rate Flicker free in full dimming range (flicker rate <5%)
No load output voltage 60V DC Max 65V DC Max 70V DC Max
Full output power 20W (single output) 20W(dual output) 46W (single output) 46W (dual output)
Output current/voltage

300mA / 9-42V DC

350mA / 9-42V DC

400mA / 9-42V DC

450mA / 9-42V DC

500mA / 9-40V DC 550mA / 9-36V DC

600mA / 9-32V DC

650mA / 9-30V DC

700mA / 9-28V DC

250mA / 9-50V DC

300mA / 9-50V DC

350mA / 9-50V DC

400mA / 9-50V DC

600mA / 9-53V

650mA / 9-53V

700mA / 9-53V

750mA / 9-53V

800mA / 9-53V

850mA / 9-53V

900mA / 9-50V

950mA / 9-48V

1000mA / 9-46V

1050mA / 9-44V

700mA / 9-53V

750mA / 9-53V

800mA / 9-53V

850mA / 9-53V

900mA / 9-50V

950mA / 9-48V

1000mA / 9-46V

1050mA / 9-44V
Current accuracy ±5%
Wireless module
Protocol Zigbee
Module frequency 2.4GHz-2.484GHz 250Kbps Radiation power: 10dBm Receiver sensitivity:-101±2dBm
Transmitting range >20m (same floor)





Model No. ML20C-Zi ML20CC-Zi ML46C-Zi ML46CC-Zi
Abnormal protect
Protection mode Over voltage protection No load protection Short circuit protection
Environment
Working temp. -25~45℃
Storage temp. -40℃~80℃, humidity: ≤85% (non-condense)
Tc 85℃
Certificate
Comply to CE, CCC, TUV, SAA
Environment Comply RoHS 2.0, Reach
LVD standard EN61347-1, EN61347-2-13
Hi-pot test 3750VAC
EMC standard EN55015, EN61547, EN61000-3-2, EN61000-3-3
Surge L to N:1KV
IP rate IP20
Protection Class II
Others
Wiring Press-in terminals input wire: 0.5-2.5mm2 Output wire: 0.5-1.5mm2
Packing Paper box
Packing details Paper box+outer carton (K=A)
  1. weight
 109±5g 118±5g 145±5g 145±5g
Life time 5 years warranty @Ta 230V AC full load
Remark:
All parameters are tested under 230V AC input environment temp. 25℃



Tuya Zigbee3.0 IOT Driver ML20C-Zi & ML20CC-Zi ML46C-Zi & ML46CC-Zi 4Tuya Zigbee3.0 IOT Driver ML20C-Zi & ML20CC-Zi ML46C-Zi & ML46CC-Zi 5
