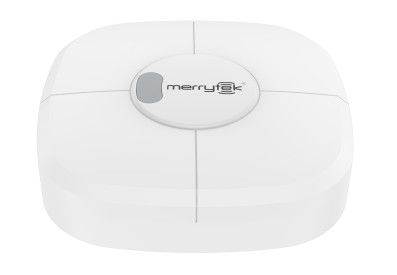

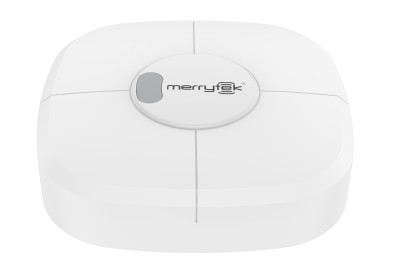

24GHz FMCW microwave presence detectors with surface mounting and 5 years warranty

  • 24GHz FMCW microwave presence detectors with surface mounting and 5 years warranty
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA065S 99
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details White box+ White box tags+ Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 220-240Vac, 50/60Hz Working Current 50mA MAX.
Power Consumption ≤1W Function Reliable And Accurate Microwave Presence Detectors
Breath Detecting Area (radius) 3.5m±0.5m Mounting Height 2.5-4m
Installation Surface Mounted IP Rating IP20
Leave a Message
Product Description

24GHz FMCW microwave presence detectors with surface mounting and 5 years warranty


1. Features
1) Exclusive Merrytek Lifebeing Presence Detection
2) FMCW modulation technology applied to detect micro movement brought by breathing
3) Germany RF technology applied for a 5-year guarantee assurance
4) PUSH button on/off or dimming control available
5) Relay max loading capacity:800w resistive loading and 400w inductive loading & LED
6) Sensor parameter adjustable by DIP switch or remote

7) 5 years warranty period


2. Parameters

Input/Output Input voltage 100-240V AC 50-60Hz
Rated voltage 220V AC
Working current 50mA max
Consumption ≤1W 230V DC
Max surge 1KV(L/N,EN61000-4-5)
Output signal 1 channel ON/OFF(Max 800w resistive loading and 400w inductive loading)+1 channel push control
Max surge current

16A relay

30A(test by 50% Ipeak and twidth 500us @230Vac by full loading from cold boot

60A(test by 50% Ipeak and twidth 200us @230Vac by full loading from cold boot
Sensor Parameter Radar frequency 24GHz-24.25GHz ISM band
Transmitting Power 5mW Max
Detection Area Remote/Dip setting: 0-4m
Hold Time Remote/Dip setting: 10s-30min Remark: presence detection will be available only when the hold time is set >30s
QS1+100% detection range radius major/minor/micro-movement(3m height installation): 3.5±0.5m(based on 41㎡ open area test and might change due to different space)
Daylight sensor threshold 5-150lux/Disable
Sensitivity High/Medium/Low
Remote control Available
Mounting height 2.5-4.0m typical value:3m
3dB beam angle 100°(XZ)
100°(YZ)
Application Environment Installation Ceiling mounting
Working temperature 0℃...+50℃
Storage temperature -40℃~+80℃
Warranty 3 years(available due to product quality problem under indoor application)
Certificate Standard Certificate Compliant to CE
Environmental requirements Compliant to RoHS
IP rating IP20
“N/A” means not available

3. Dimension



24GHz FMCW microwave presence detectors with surface mounting and 5 years warranty 0

                                        24GHz FMCW microwave presence detectors with surface mounting and 5 years warranty 1





4. Wiring Diagram

24GHz FMCW microwave presence detectors with surface mounting and 5 years warranty 2
5. Detection radiation

24GHz FMCW microwave presence detectors with surface mounting and 5 years warranty 3








































6.  Detection Signal



The product detects human moving, minor moving, and presence signals, and realizes the detection of human-existing/no-human in non-sleep state. The following is a description of the moving, minor moving and presence signals:

l Major movement: detect the human significant moving (walking) in the detection area.

l Minor movement: detect the human slight movement in the detection area, such as leaning forward, leaning forward and back, swinging limbs, shaking head, typing, playing with mobile phones, and so on.

l Micro movement: detect human abdominal and thoracic expansion behaviors caused by breathing but do not detect moving signals or minor moving signals.

24GHz FMCW microwave presence detectors with surface mounting and 5 years warranty 4



7. DIP SWITCH SETTING

Detection Area

  1 2 3
Ⅰ ON ON ON 4m
Ⅱ - ON 3.5m
Ⅲ ON - - 3m
Ⅳ - - 2.5m
V ON ON - 2m
VI - ON 1.5m
VII ON - ON 1m
VIII - - 0.5m

Hold Time

  4 5 6 7
Ⅰ ON ON ON ON 10S
Ⅱ ON - ON ON 30S
Ⅲ ON ON - ON 1min
Ⅳ ON ON ON - 3min
Ⅴ ON ON - - 5min
Ⅵ - - ON ON 10min
Ⅶ - - - - 30min



Daylight sensor

8 9
ON ON 5Lux
- ON 50Lux
ON - 150Lux
- - Disable





8. Remote Manual MH18

24GHz FMCW microwave presence detectors with surface mounting and 5 years warranty 5

For more information, please get in touch with our sales rep. for more details.
