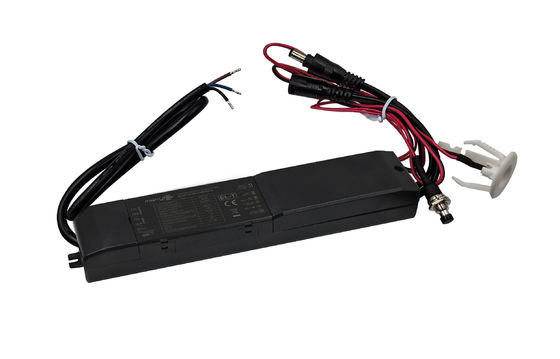

3W LED Emergency Kits And Drivers With 5 Years Warranty And 3 Hours Emergency Time

  • 3W LED Emergency Kits And Drivers With 5 Years Warranty And 3 Hours Emergency Time
Place of Origin China
Brand Name Merrytek
Certification CE, UKCA, UN38.3,MSDS
Model Number KE026-03AM180HB1
Minimum Order Quantity 100
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Input Voltage 220-240Vac 50Hz /60Hz Emergency Power 2.5W(Can Be Customized)
Emergency Time 180min (Can Be Customized) Warranty 5 Years( Battery Included)
Load Output Voltage 50-180Vdc Working Temprature 0℃~50℃
IP Rating IP20 Battery Type LifePO4 6.4V 1800mAh
Highlight

LED emergency kits and drivers

,

3W LED Emergency Driver

,

5 years warranty LED Emergency Driver
Leave a Message
Product Description

3W LED emergency kits and drivers with 5 years warranty and 3 hours emergency time





1. Description



1) Constant power output LED emergency power supply with a wide output voltage range.
2) Input relay switching.
3) High safety, high performance, long life LifePO4 battery.
4) With battery management.

5) Manual test and automatic test selection.





2. Parameters

Charge Part KE026 03AM180HB1
Rated input voltage 220-240Vac 50Hz/60Hz
Rated input current 0.06A Max. @230Vac
Input inrush current 10A(Twidth=100us 50% Ipeak )@230Vac (Cold start at full load)
Power factor ≥0.5@230Vac
Input power <4W@230Vac
Battery charging current 200mA Max.
Battery charging time 24 hours Max.
Emergency Part Operating mode Emergency mode
Load type LED
Emergency power 2.5W
Emergency time 3 hours
Load output current 50-13mA
Load output voltage 50-180Vdc
Battery LifePO4 (The battery capacity meets the emergency time at 25℃) 6.4V 1800mAh
Battery warranty Warranty 5 year @5~60℃.
Exception Driver Requirements Surge current 8A
Input current 3A Max.
Output current 2A Max.
LED Indication
(Manual test)		 Charging Green light
Fault Green light off
Emergency Function Test Manual test Pin short
Auto test Pin open
Auto Testing Fault / test / Status Reason Charge Indicator Status
Battery fully charged and operational Standard daily use


solid green
Battery Charging Initial Charge/Battery Top Up
Flashing green 1 sec on 1 sec off
Auto Test 3 Hours (every 12 months) Periodic self-test
Flashing Green 3 sec on 1 sec off
Auto Test 5 Min (every 30 days) Periodic self-test
Flashing Green 3 sec on 3 sec off
Duration test fault Automatic test failed
Flashing Red 0.5 sec on 0.5 sec off
LED fault Not plugged in or damaged/faulty
Flashing Red 2 sec on – 2 sec off
Battery Disconnected/Faulty Not plugged in or damaged/faulty
solid red
Abnormal protection over-charge/deep discharge protection Yes
Output over-voltage protection Yes
Output overload protection Yes
Output short circuit protection Yes

Operating

Environment

 Operating temperature/humidity 0℃…+50℃humidity:20%-75%(without condensation)
Storage temperature/humidity -5℃-35℃
Case Max. Temp(Tc) 75℃

Safety

& EMC



 Withstand voltage 3000Vac 5mA 60s (Input “L N” – output “SEC+ SEC-)
Safety standard EN61347-1, 60598-2-22, 61347-2-7, 62034
EMC standard EN55015, EN61000-3-2, EN61000-3-3
Battery standard UN38.3
Environmental protection requirements Compliant to RoHS
Certification CE
Others In/output(terminal/wiring)specification Press terminal, wire diameter:0.75-1.5mm2
IP rating IP20
Type of protection Class 2
Installation type Built-in installation
Installation dimension 211*42.5*25mm
Packaging requirement White box+Instruction manual+clapboard+outer carton(K=A)
Weight 230g
Lifespan 5 Year @Ta

Notes:

All parameters are tested on the input voltage 230Vac,environment temperature 25℃,unless otherwise specified.



3. Dimension (Unit:mm)



3W LED Emergency Kits And Drivers With 5 Years Warranty And 3 Hours Emergency Time 0



4. Wiring Diagram



3W LED Emergency Kits And Drivers With 5 Years Warranty And 3 Hours Emergency Time 1

OR

3W LED Emergency Kits And Drivers With 5 Years Warranty And 3 Hours Emergency Time 2



5. Manual and Automatic Test Set Exchange

                                                                        3W LED Emergency Kits And Drivers With 5 Years Warranty And 3 Hours Emergency Time 3





6. Manual Test & Operation Instructions

1). Before installation, set Pin short: Manual Test.

2). Connect the wire according to the wiring diagram.

3). L, N power on, Switch on S1. then the load lamp turns on, The emergency driver indicator light turns green, and the emergency power supply normal charging. Turn off Switch S1, and the load lamp turns off.

4).Emergency Simulation: Switch on, the load lamp turns on, press the switch(TEST SWITCH), then switch to emergency mode, the indicator light of emergency driver will be extinguished. Release the switch(TEST SWITCH), then lamp is powered by led driver, the indicator light will turn on.



7. Automatic Test & Operation Instructions

1). Before installation, set Pin open: Automatic Test.

2). Connect the wire according to the wiring diagram.

3). L, N power on, start the clock, and periodic self-test. To replace the battery, turn off the power supply, Re-time.



8. Battery Application Notice

1). The battery should be recharged and discharged semiannually in normal use conditions.

2). Do not connect to the circuit when the battery is not used to prevent over-discharge of the battery due to self-consumption of the circuit board.

3) . Please keep the battery from the heat source when installing and using it, and only be allowed to use it in a certain working temperature range.

4). The battery should be stored in a cool and dry environment.

5). After a long time of storage, the battery is cycled every 12 months as required.

6). AC power is off, and the clock lasts for 7 days, Power on and re-time. To replace the battery, turn off the power supply, Re-time.
