12-24Vdc Input Dry Contact PIR Motion Sensor Light Switch With Planar Rectangle Fresnel Lens

  • 12-24Vdc Input Dry Contact PIR Motion Sensor Light Switch With Planar Rectangle Fresnel Lens
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA238D IR
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details White box+ White box tags+ Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 12-24Vdc Working Current 20mA MAX.
Power Consumption ≤0.5W Function Dry Contact, Easy Connect With RCM System
Detecting Area (radius) 2m Mounting Height 4m
Installation Flush Mounting Warranty 3 Years
Highlight

Dry Contact pir motion sensor

,

12-24Vdc pir motion sensor

,

PIR Motion Sensor Light Switch
Leave a Message
Product Description

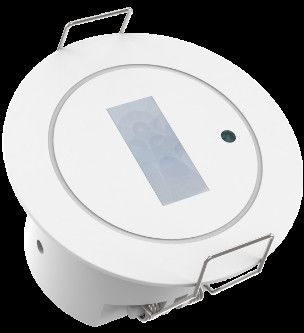

12-24Vdc input Dry Contact pir motion sensor light switch with planar rectangle fresnel lens


1. Features
1) PIR motion detection
2) l Accurate NO/NC dry contact output
3) Daylight sensor detection is available
4) Detection area, and hold time can be set by remote control
5) Max detection range: 4m in diameter
6) 4m max mounting height: corridor, staircase motion detection is highly recommended


2. Parameters

Input/Output Input voltage 12-24V DC
Rated voltage 12/24V DC
Working current 20mA max
Power consumption ≤0.5W @12/24V DC
Output signal NO/NC dry contact (Factory setting is NO dry contact)
Sensor parameter Function PIR motion detection+ daylight sensor
Detection Area Remote setting: 100%/75%/50%/25%
Hold Time Remote setting: 2s/1min/3min/5min/10min/30min
Daylight Sensor Threshold Remote setting: 15lux/50lux/Disable
Radius detection range(based on 100% sensitivity) Tangential moving based on 3m high installation: 0-2m from long side,0-0.5m from short side @25℃(radial moving detection range will shorten)
Remote control Available
Mounting height 2.5-4m typical value:3m
Application environment Drill hole Φ45mm
Working temperature -25℃...+50℃(detection range might differ based on different temperature )
Storage temperature -40℃~+80℃
Warranty 3 years(available due to product quality problem under indoor application)
Certificate Standard Certificate Compliant to CE
Environmental requirements Compliant to RoHS
IP rating IP20



3. Dimension

12-24Vdc Input Dry Contact PIR Motion Sensor Light Switch With Planar Rectangle Fresnel Lens 0
12-24Vdc Input Dry Contact PIR Motion Sensor Light Switch With Planar Rectangle Fresnel Lens 1



4. Wiring Diagram

12-24Vdc Input Dry Contact PIR Motion Sensor Light Switch With Planar Rectangle Fresnel Lens 2

12-24Vdc Input Dry Contact PIR Motion Sensor Light Switch With Planar Rectangle Fresnel Lens 3
5. Detection radiation
12-24Vdc Input Dry Contact PIR Motion Sensor Light Switch With Planar Rectangle Fresnel Lens 4




6. Remote Control

12-24Vdc Input Dry Contact PIR Motion Sensor Light Switch With Planar Rectangle Fresnel Lens 5
