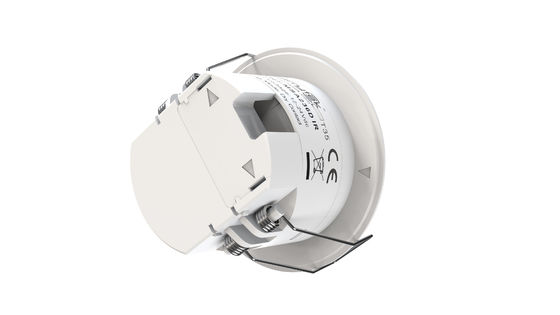

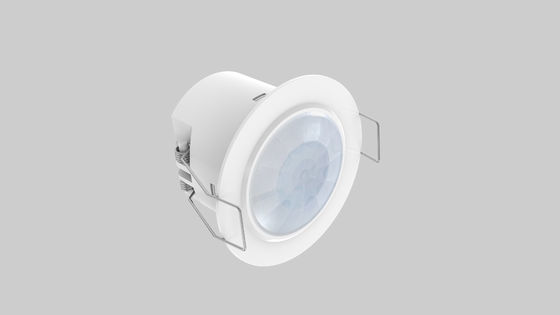

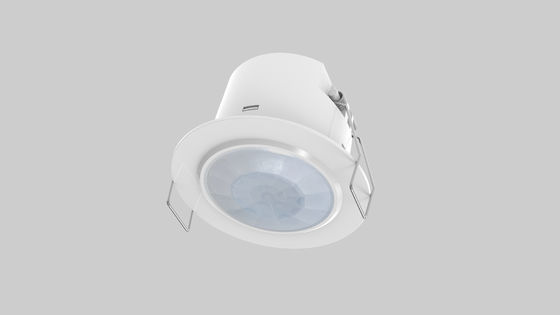

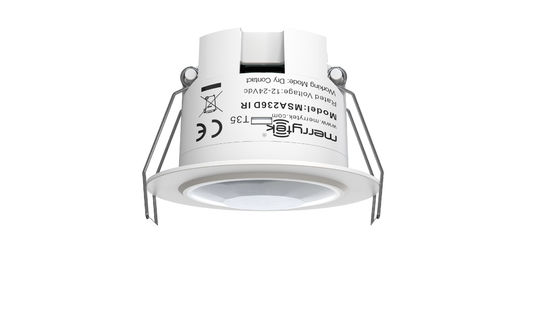

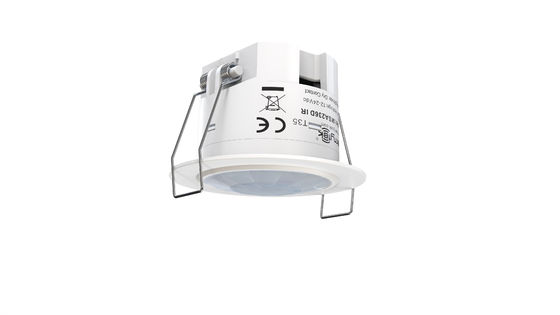

Compact size 360-degree PIR motion sensor light controller without dry contact output

  • Compact size 360-degree PIR motion sensor light controller without dry contact output
  • Compact size 360-degree PIR motion sensor light controller without dry contact output
  • Compact size 360-degree PIR motion sensor light controller without dry contact output
  • Compact size 360-degree PIR motion sensor light controller without dry contact output
  • Compact size 360-degree PIR motion sensor light controller without dry contact output
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA236D IR
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details White box+ White box tags+ Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 12-24Vdc Working Current 20mA MAX.
Power Consumption ≤0.5W Function Dry Contanct Output, NO/ NC Mode
Available Motion Detectiong, Daylight Sensor Mounting Height 2.5-4m
Installation Flush-mounted Cut Size Φ45mm
Leave a Message
Product Description

Compact size 360-degree PIR motion sensor light controller without dry contact output


1. Features
1) PIR motion detection
2) Exquisite appearance with planar Fresnel lens
3) Accurate NO/NC dry contact output
4) Daylight sensor detection available
5) Detection area, hold time, and daylight threshold can be set by remote
6) Max detection range: 8-10m in diameter
7) Factory setting is NO dry contact, yet can switch to NC by remote
8) Hallway and Toilet motion detection is highly recommended
9) Flush mounting and surface mounting available
10) Compact mini size for perfect ceiling mounting


2. Parameters

Input/Output Input voltage 12-24V DC
Rated voltage 12/24V DC
Working current 20mA max
Power consumption ≤0.5W @12/24V DC
Output signal NO/NC dry contact (Factory setting is NO dry contact)
Sensor parameter Function PIR motion detection, daylight sensor
Detection Area Remote setting: 100%/75%/50%/25%
Hold Time Remote setting: 2s/1min/3min/5min/10min/30min
Daylight Sensor Threshold Remote setting: 15lux/50lux/Disable
Radius detection range(based on 100% sensitivity) Tangential moving based on 3m high installation: 4-5m @25℃(radial moving detection range will shorten)
Remote control Available
Mounting height 2.5-4m typical value 3m
Application environment Drill hole Φ45mm
Working temperature -25℃...+50℃(detection range might differ based on different temperature )
Storage temperature -40℃~+80℃
Warranty 3 years(available due to product quality problem under indoor application)
Certificate Standard Certificate Compliant with CE
Environmental requirements Compliant to RoHS
IP rating IP20
“N/A” means not available

3. Dimension

Compact size 360-degree PIR motion sensor light controller without dry contact output 0

Compact size 360-degree PIR motion sensor light controller without dry contact output 1



4. Wiring Diagram

Compact size 360-degree PIR motion sensor light controller without dry contact output 2

Compact size 360-degree PIR motion sensor light controller without dry contact output 3
5. Detection of radiation

Compact size 360-degree PIR motion sensor light controller without dry contact output 4





6.  Detection Signal



The product detects human moving signals, and below is a description of the moving signals:

Moving signal: detect the human significant moving (walking) in the detection area.



7. Remote Control MH18

Compact size 360-degree PIR motion sensor light controller without dry contact output 5



For more information, please get in touch with our sales rep. for more details.
